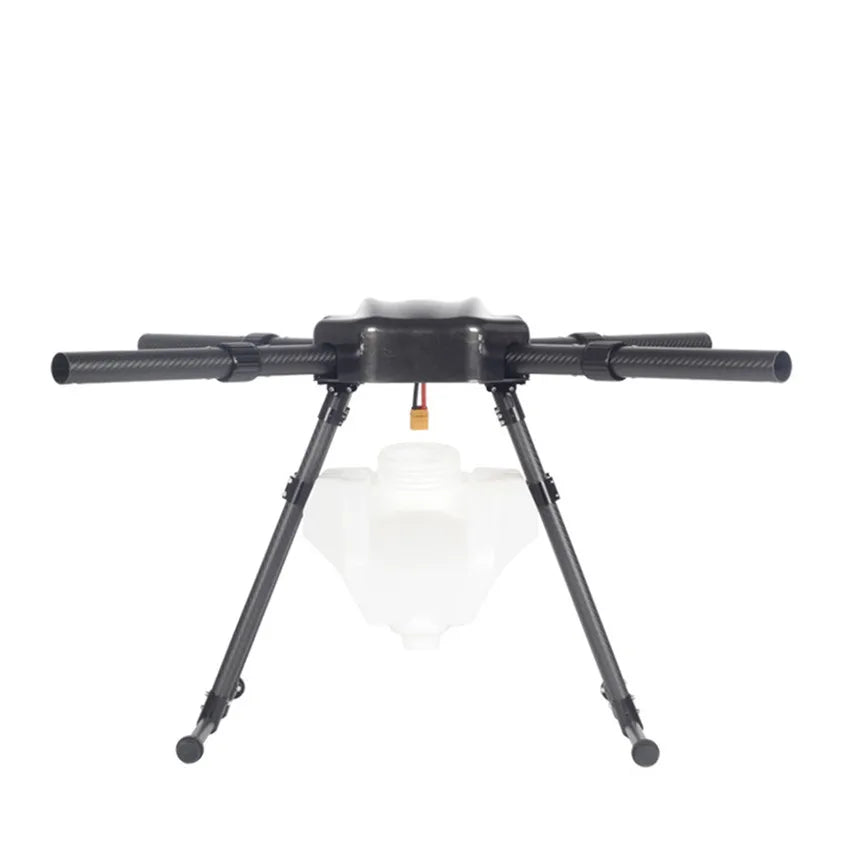

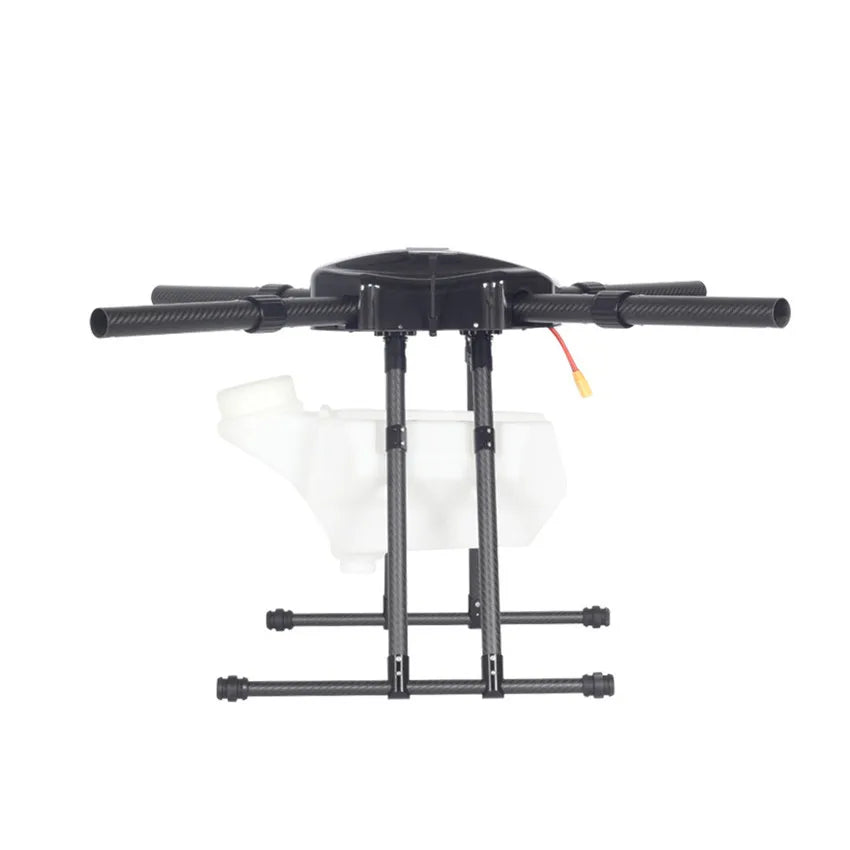

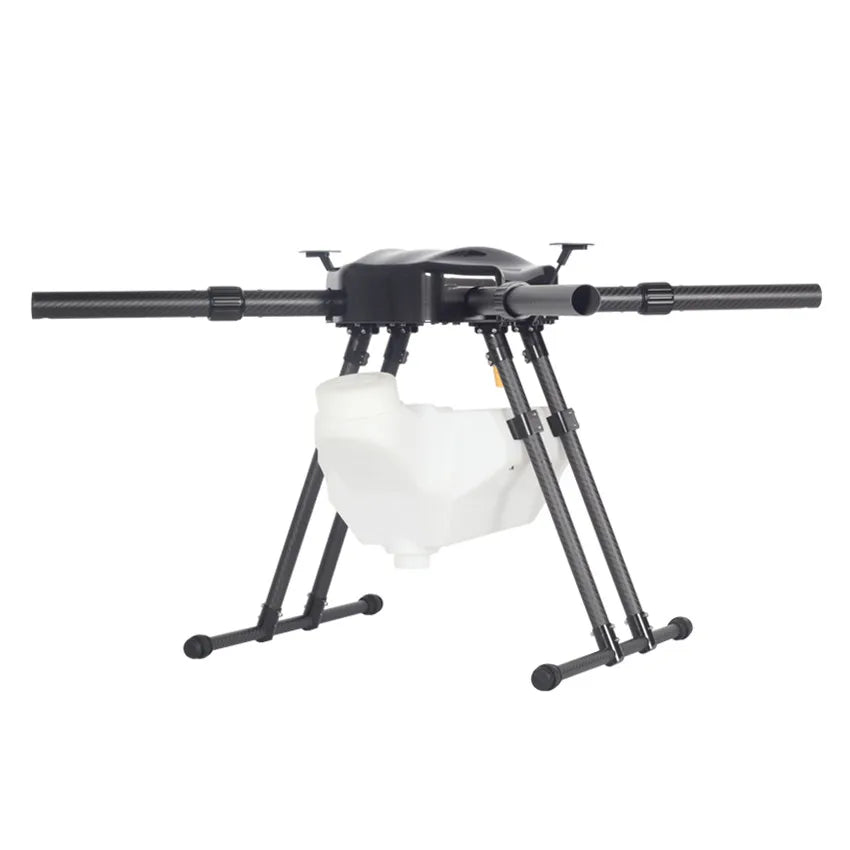

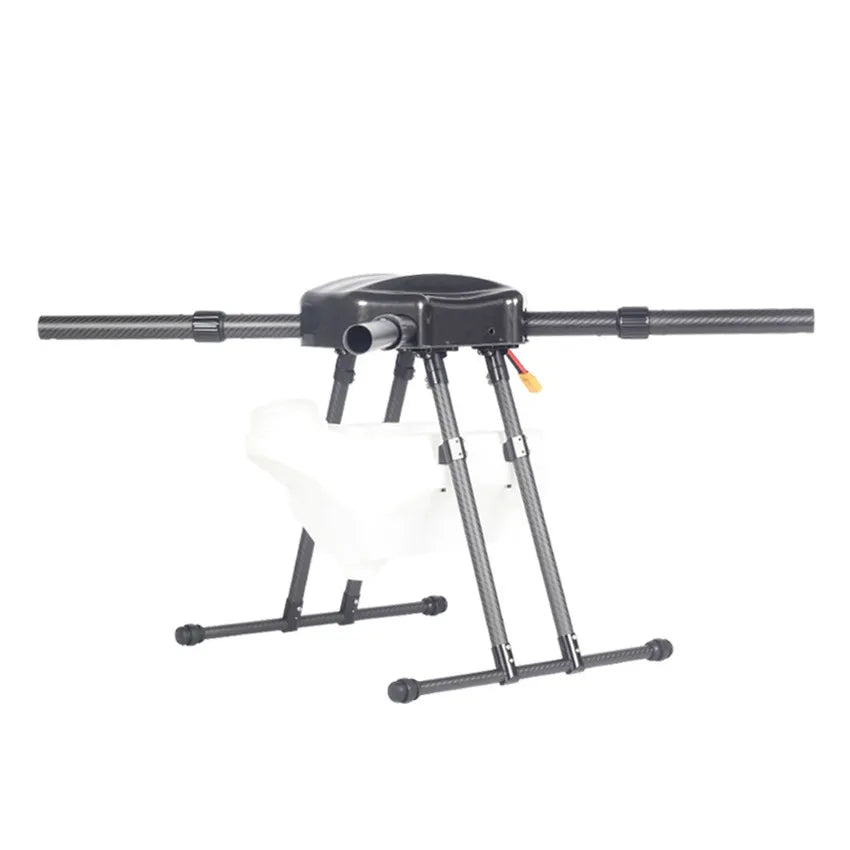

MX405 5L agricultural plant protection drone frame carbon fiber multi-purpose plant protection machine for agricultural

Product parameters
Product name: MX405 rack

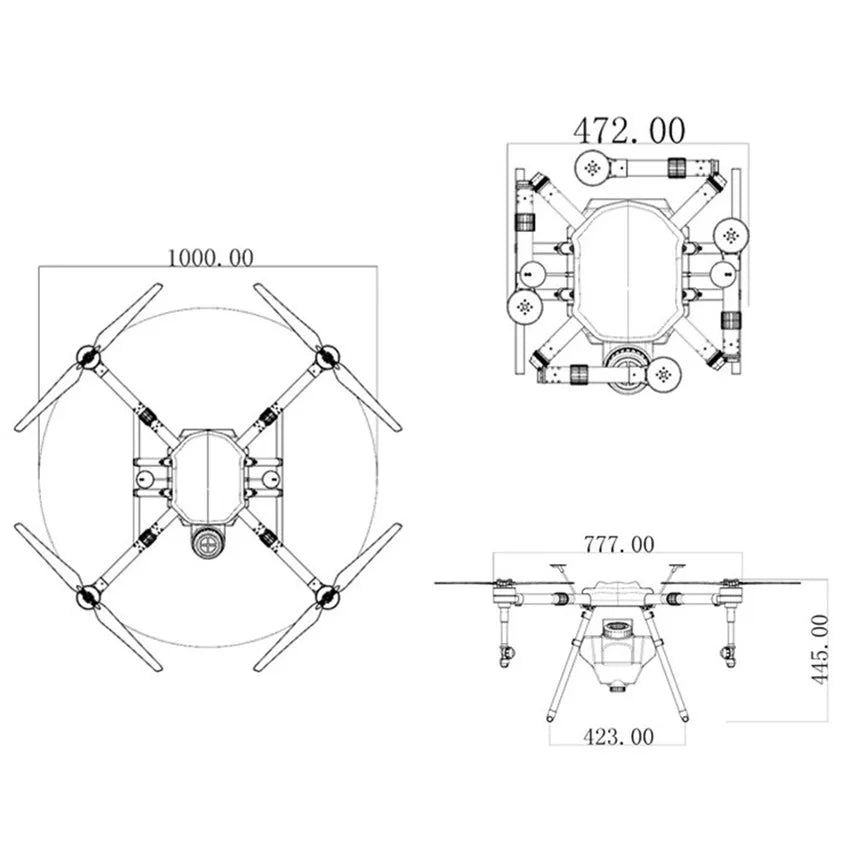

Product wheelbase: 1000mm
Product size: 775*775*445mm

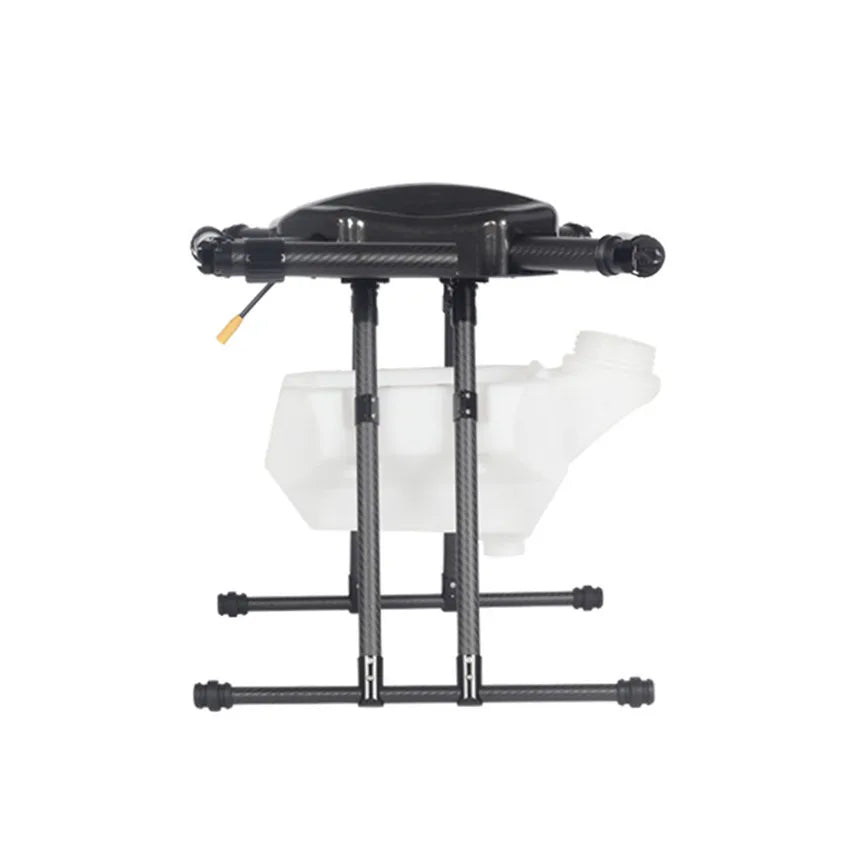

Folded size: 470*470*445mm
Empty rack weight: 2.2KG
Container weight: 5L

Recommended configuration:
Flight Control System: DJI, Polar Wing, Extension Attack
Brushless motor: 6125/340KV
Brushless ESC: Foc 60A 6S
Pump ESC: 20A 6S
Paddle: 24 inch
Blade spraying method: brushless water pump pressure nozzle

Medicine box description:
1.7.5cm outer diameter imported medicine port. During operation, the ventilation valve of the medicine box cover needs to be opened to allow medicine to flow out normally, otherwise the medicine box will be deformed and damaged due to excessive water pressure.
2. The bottom of the medicine box expands the installation position of the radar, the bottom is made with anti-shock design, and a plurality of size mounting holes are reserved at the bottom.
3. Rhombus fixing aluminum parts, more stable against shocks.
