13 Liters solid sowing seeding and fertilizing tank DJI MG Spreading System for agriculture spraying drone accessory spare parts
13 Liters solid sowing seeding and fertilizing tank DJI MG Spreading System for agriculture spraying drone accessory spare parts
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Place of Origin: Guangdong, China
Brand Name: DJI
Model Number: MG Spreading System
Material: Plastic
Power: Battery
Type: agriculture use
Function: sow seeds, fertilize the soil or land, rigid granules
Capacity: 13000 ml
Compatible Aircraft 01: Agras MG-1S
Compatible Aircraft 02: Agras MG-1S Advanced
Compatible Aircraft 03: Agras MG-1P series
Spread Tank Volume: 13 L
Spread Tank Internal Load: 10 kg
Compatible Material Diameter: 0.5 - 5 mm
Max Hopper Outlet Area 1.0: 8.6 cm
Max Hopper Outlet Area 2.0: 32.3 cm
Weight 1.0: 1.8 kg
Weight 2.0: 2.1 kg
Introduction
The MG Series Spreading System is compatible with Agras MG series aircraft and offers efficient, reliable, and stable spreading operations. The material delivery system is precisely controlled by the built-in stirring device and hopper gate, which can prevent material blockages and improve operating accuracy and reliability.
Use the app compatible with your aircraft to set parameters such as the hopper outlet size and spinner disk rotating speed. These parameters can be adjusted to meet different requirements. The app provides warning prompts for an empty tank as well as for abnormalities in the rotating speed, temperature, and hopper outlet size. These prompts help ensure system safety. The Spreading System has two versions, 1.0 and 2.0. They each have a different structure for the spinner disk. Compared with the Spreading System 1.0, the Spreading System 2.0 has a higher material delivery rate and can spread materials 360° around the aircraft. Unless otherwise specified, the descriptions in this document use the Spreading System 1.0 as an example.

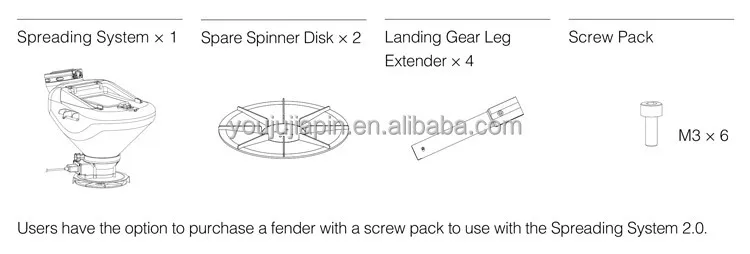

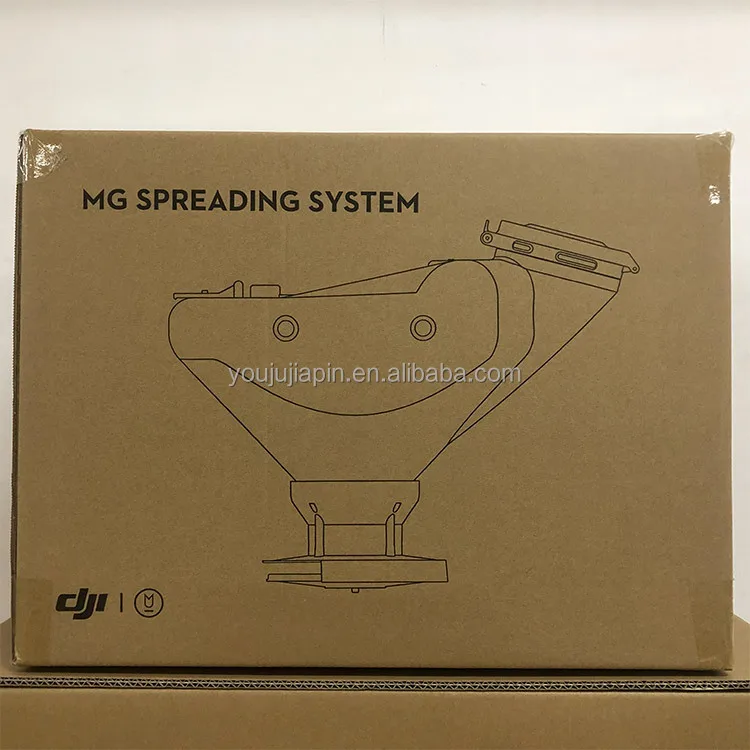

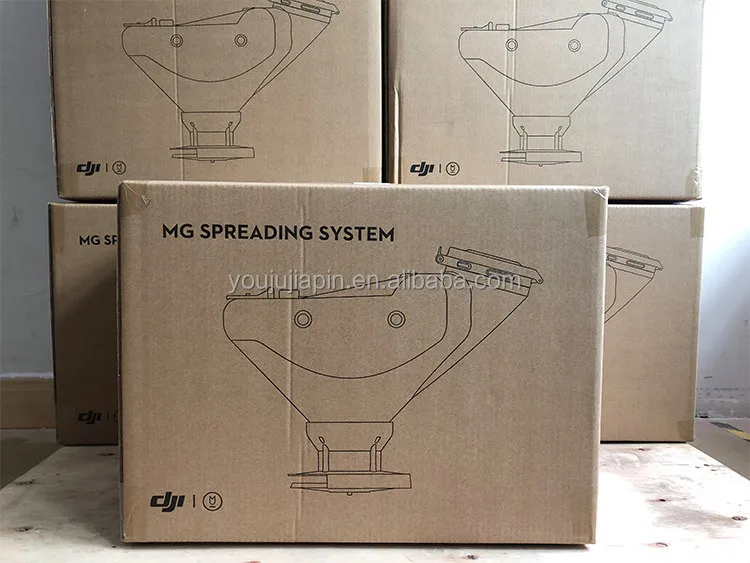

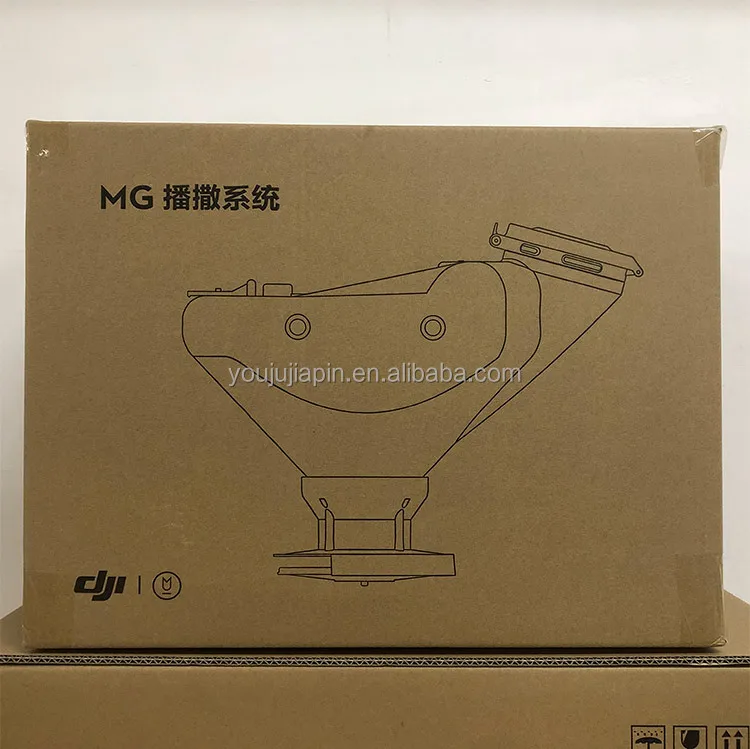

In the Box

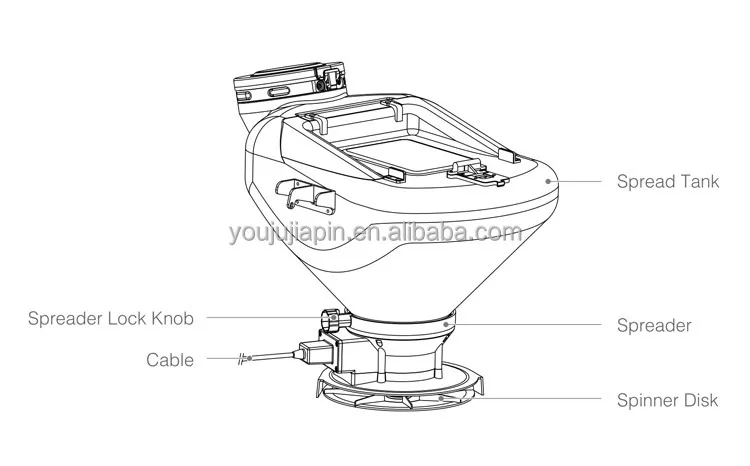

Overview
Route Operation Mode
After starting an operation, the aircraft ascends to an altitude of 4 meters and the spinner disk spins. When the aircraft reaches the route starting point, the hopper gate opens according to the set value and the aircraft flies along the route and spreads material automatically. Spreading cannot be started or stopped manually.
After the aircraft enters A-B Route Operation Mode, the spinner disk spins. When the aircraft reaches the first turning point, the hopper gate opens according to the set value and the aircraft flies along the route and spreads material automatically. Spreading cannot be started or stopped manually. The operation resumption function can be used during operation. Once the operation is paused, the hopper gate closes automatically to stop spreading while the spinner disk is still spinning. After operation is resumed, the aircraft returns to the breakpoint or projection point and continues spreading.
Switch to M+ after the aircraft takes off. Press the Spray button to start the spinner disk. The hopper gate opens according to the set value and the aircraft spreads material automatically once it has begun flying.
Switch to M after the aircraft takes off. Use the Spray button on the remote controller to start or stop spreading.
• When the aircraft flies forward or backward, the hopper gate opens automatically to start spreading.
• When the aircraft flies left or right, the hopper gate closes automatically to stop spreading while the spinner disk continues to spin.
Specifications
| Compatible Aircraft* | Agras MG-1S, Agras MG-1S Advanced, Agras MG-1P series |
| Weight | Spreading System 1.0: 1.8 kg |
| Spreading System 2.0: 2.1 kg (excluding fender) | |
| Spread Tank Volume | 13 L |
| Spread Tank Internal Load | 10 kg |
| Compatible Material Diameter | 0.5 - 5 mm |
| Spread Tank Volume | 20 L |
| Max Hopper Outlet Area | Spreading System 1.0: 8.6 cm 2 |
| Spreading System 2.0: 32.3 cm 2 | |
| Spreading Range | Varies according to material diameter, spinner disk rotating speed, hopper outlet size, and flying altitude. For best operating performance, it is recommended to adjust the corresponding variables to achieve a spreading range of 4 - 6 meters (for Spreading System 1.0) or 5 - 7 meters (for Spreading System 2.0). |
